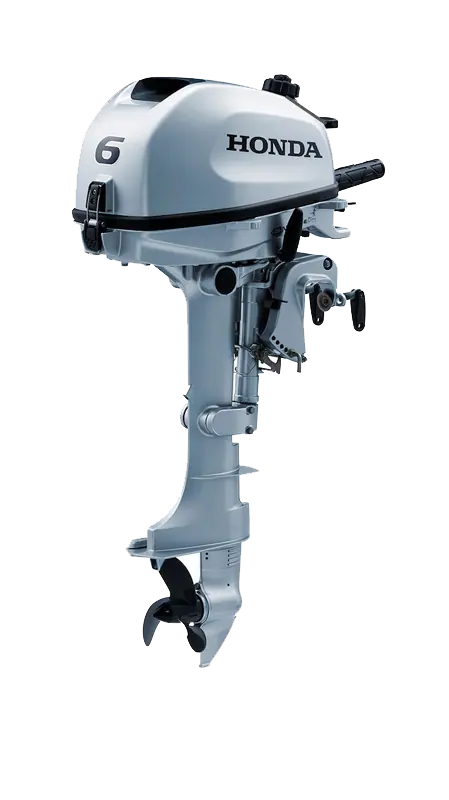

Honda BF 6

Models

BF 6 SHNU

Bf 6 lhnu

Bf lhu

Bf shu

• Explanation
• S: Short shaft, L: Long shaft, H: Manual steering and starting
• Technical data:
• Engine:

4-stroke OHV, 127 cm3, 6HP/ 4.4kW at 4500-5500 U/min., water cooling, 1 carburetor, electronic ignition, exhaust isopd water, coil 3A, Spark plug: NGK BPR 5 ES, engine oil: 0.55 L , oil in rate: 0.1 L.

Gearbox

Gear ratio 2.08:1, forward – neutral – reverse

Equipment

Standard propeller 7 7/8 × 7 1/2, oil level indicator, shut-off switch (Quickstop), lever control, easy start via rope, manual tilting, 5 trim positions, integrated fuel tank 1.5l.

Dimensions

Length/Width/Height: 525mm/350mm/1005mm(S),1135(L) mm Mirror height: 445mm(S), 572mm(L)

Weight: 27kg (S), 27.5kg (L)

Performance

Large volume (127cm3), higher torque at low revolutions.

Reliability

The high-quality and robust manufacturing method leads to the longevity of the engine and, as with other engines, the oil pressure indicator.

Easy management

Ergonomically designed control lever, easy-to-use shift lever.

Frugality

Very low maintenance and consumption costs, average consumption: 0.8 l/h.

Environmental Protection

Supports EPA 2006 and CARB 2004 Standards.
