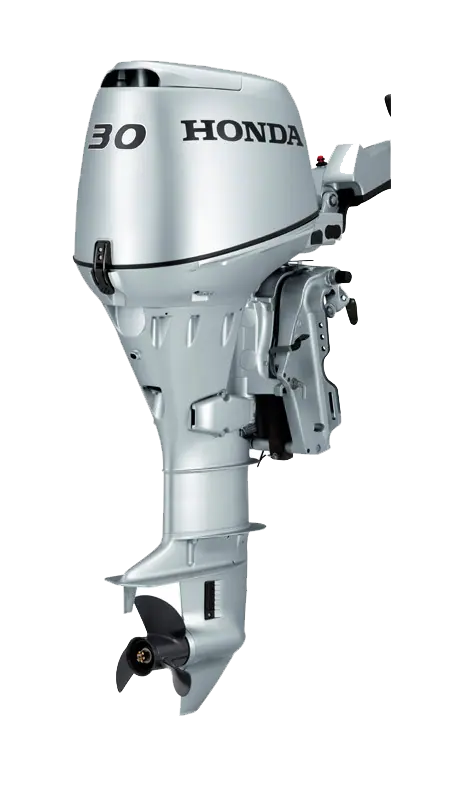

Honda BF 30

Models

BF 30 SHG, BF 30 LRT

Explanation

S: Short axle, L: Long axle, RT: Remote control and hydraulic trim.

• HG: Manual steering and gas shock absorber for easier lifting (engine without trim)
• Technical data:
• Engine:

4-stroke OHC, 552 cm3, 3 cylinders, 30HP/22.1kW at 6000 U/min., water cooling, 3 carburetors, electronic ignition, exhaust through the propeller, Coil 12/V/10A, spark plug: NGK DR7EA, engine oil : 2.4 L, oil in foot: 0.52 L.

Gearbox

Gear ratio 2.08:1, forward – neutral – reverse

Equipment

Standard propeller (S) 9 1/4 × 12, oil warning light, shut-off switch (Quickstop), easy rope start, electric start, manual trim in 5 positions or gas, rev limiter, manual engine lift.

Dimensions

Length/Width/Height: 640mm/375mm/1195mm(S), 1320(L) mm.

• Mirror height: 431mm (S), 552mm (L)
• Weight: 80kg (SHG), 79.5kg (LRT)

Performance

3 cylinders/3 carburetors: optimally matched and perfect capabilities.

High torque at lower revs.

Reliability

Rev limiter, oil pressure indicator, alarm in case of overheating.

Frugality

Full throttle: 33% lower consumption compared to a two-stroke engine, Traction: 62% lower consumption than two-stroke engines, average consumption: 3.7 l/h.

Practicality

Vibrating arm via perfect motor mount, reduced noise via large intake muffler.

Environmental Protection

Meets EPA 2006 and CARB 2008 standards
