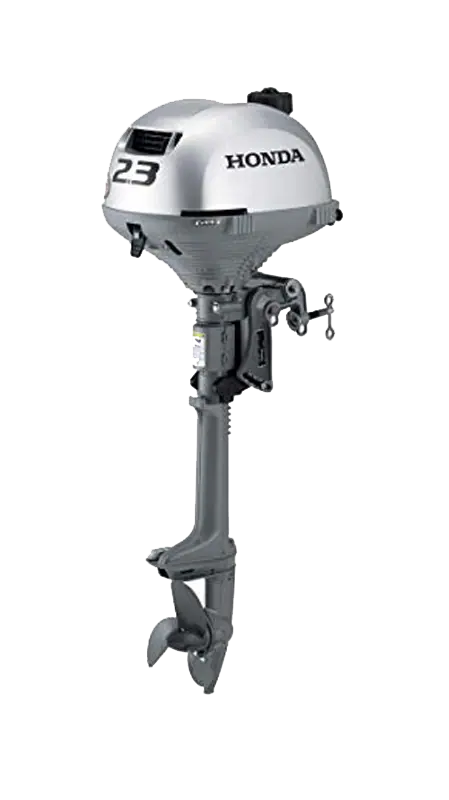

Honda BF 2.3

Models

BF 2,3 SCH

Bf 2.3 lch

Explanation

S: Short shaft, L: Long shaft, C: Centrifugal gearbox, H: Manual control, D: European type, G: Meets criteria for Bodensee regulations

Technical data:

Engine

4-stroke OHV, 57 cm3, 2.3PS (G), 1.7kW (G) at 6000 U/min. Air cooling, 1 carburetor, electronic ignition, exhaust isopd water, Spark plug: NGK MR4 A, engine oil: 0.4 L, foot oil: 0.05 L.

Gearbox

Variomat type clutch

Gear ratio 2.42:1, forward – neutral + 360°

Equipment

Standard propeller 7 1/4 × 4 3/4, oil quantity indicator, shut-off switch (Quickstop), handle control, easy rope start, manual tilt, 5 trim positions.

Dimensions

Length/Width/Height: 410mm/280mm/945mm(S), 1100(L) mm

• Mirror height: 418mm (S), 571mm (L)
• Weight: 13.5kg (S), 14kg (L)

Unique on the market

The only 2.3 HP – 4-stroke engine with centrifugal gearbox, neutral position and control lever, 360 degree rotation, air cooling = no change of impeller. Built-in fuel tank.

Easy handling

Control, acceleration and shifting all with one hand, and an integrated 1l tank.

Easy to transport

Light as a two-stroke engine and a large, ergonomically designed carrying handle.

Sparingly

Over two hours of driving with a tank, average consumption: 0.3 l/h

Safety in use

Neutral propeller position and one-handed control; so that one hand always remains free to hold

Environmental Protection

Supports EPA 2006 and CARB 2004 Standards.
