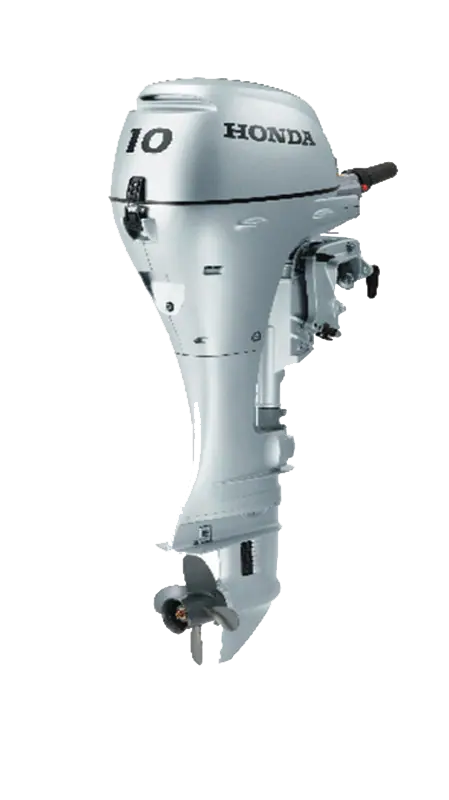

Honda BF 10

Models

BF 10 SH, BF 10 LH, BF 10 LHS, BF 10 SR, BF 10 LR

Explanation

S: Short shaft, L: Long shaft, H: Propeller, hose and fuel tank, HS: Manual control and manual and electric start, R: Side remote control, propeller hose and fuel tank

• Technical data:
• Engine:

4-stroke OHC, 2 cylinders, 222 cm3, 10HP/7.4kW at 6000 U/min, water cooling, 1 carburetor, electronic ignition, exhaust through a propeller. Spark plug: NGK CR5EH-9, engine oil: 1.3 L, foot oil: 0.30 L.

Gearbox

Gear ratio 2.33:1, forward – neutral – reverse

Equipment

Standard propeller (S) 9 1/4 × 9, oil indicator light with warning, shut-off switch (Quickstop), soft start via rope, electric start, manual tilt, 5 trim positions, overheating protection. With a 10×6 1/4 propeller, we get the Power Thrust version (high thrust engine).

Dimensions

Length/Width/Height: 610mm/345mm/1107mm(S), 1237(L) mm, Mirror height: 433mm (S), 563mm (L), Weight: 42kg (SH), 48.5kg (LR)

Arguments when selling:

Performance

Fastest and lightest 4-stroke engine in its class, lowest drag acceleration, four-blade propeller for power.

Economy

The most economical in its class: 40% less consumption than a two-stroke engine, 20% less consumption than the previous model, avg. Consumption: 1.6 l/h

Practicality

Honda’s patented damping system: reduced vibration, reduced noise through a large intake muffler.

Reliability

Oil pressure indicator and overheating control, speed limiter, longevity through High-Tech manufacturing method.

Environmental Protection

Meets EPA 2006 and CARB 2008 standards
